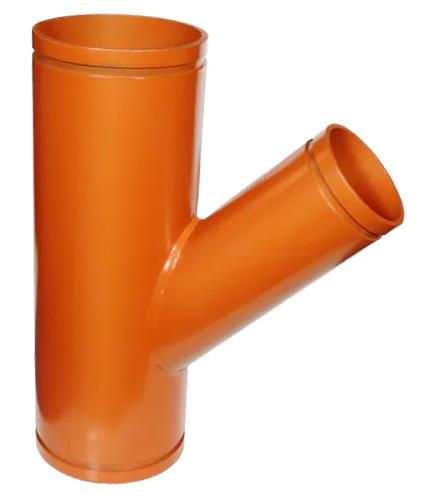

Gruvlok Figure 7070 Grooved 45° Reducing Lateral
Gruvlok Figure 7070 Grooved 45° Reducing Lateral
The Gruvlok Figure 7070 Grooved 45° Reducing Lateral is a heavy-duty grooved pipe fitting designed to create a reduced-size branch connection at a 45-degree angle from the main piping run. Engineered for commercial, industrial, mechanical, and process piping applications, the Figure 7070 combines an angled lateral configuration with a reduced branch outlet, providing an efficient solution for systems requiring both directional and pipe-size transitions.
45° Reducing Lateral Branch Connection
The Gruvlok Figure 7070 45° Reducing Lateral allows a smaller branch pipe to transition away from a larger main line at a 45-degree angle. Unlike a standard lateral with equal-size openings, the reducing lateral incorporates the pipe-size reduction directly into the fitting. This can eliminate the need for a separate reducer, helping decrease the number of piping components and connections required.
The 45-degree branch configuration provides a more gradual directional transition than a conventional 90-degree reducing tee and can simplify piping layouts where angled branch routing is preferred.
Efficient Grooved Mechanical Installation
Grooved ends allow the Figure 7070 Reducing Lateral to connect to compatible grooved piping using appropriately selected Gruvlok grooved couplings and gaskets. Mechanical grooved connections eliminate field welding at fitting joints, helping reduce installation time and simplify system maintenance or modification.
Couplings and gaskets should be selected according to pipe size, operating pressure, temperature, conveyed media, and service conditions.
Industrial and Commercial Applications
The Gruvlok Figure 7070 is suitable for applications including:
-
HVAC and mechanical piping
-
Industrial process piping
-
Water distribution systems
-
Utility and plant piping
-
Commercial building systems
-
Branch and distribution piping
Dependable Gruvlok 45° Reducing Lateral
For contractors, engineers, MRO departments, and industrial facilities, the Gruvlok Figure 7070 Grooved 45° Reducing Lateral provides an efficient solution for creating smaller angled branches from larger grooved mains. Its reducing configuration, 45-degree geometry, and grooved-end design help create reliable, compact, and serviceable piping systems.
