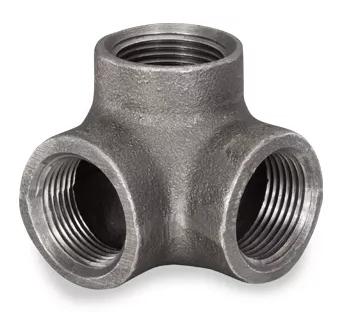

Globally Manufactured 150# FNPTxFNPTxFNPT Malleable Black Iron Pipe 90° Side Outlet Elbow
Globally Manufactured 150# FNPTxFNPTxFNPT Malleable Black Iron Pipe 90° Side Outlet Elbow
The Globally Manufactured 150# FNPTxFNPTxFNPT Malleable Black Iron Pipe 90° Side Outlet Elbow is a versatile threaded fitting designed to provide a 90-degree directional change with an additional side outlet in one compact component. Manufactured from durable malleable black iron, this Class 150 fitting features Female National Pipe Thread (FNPT) connections on all three openings, providing an efficient solution for specialized industrial, commercial, mechanical, and utility piping layouts.
Three-Way FNPT 90° Side Outlet Connection
Unlike a standard 90° elbow with two openings, a 90° side outlet elbow incorporates a third threaded connection positioned to create an additional piping branch. This three-way configuration allows compatible male-threaded pipe, nipples, fittings, valves, or equipment connections to extend in multiple directions from a single fitting.
The integrated side outlet can help eliminate the need for separate elbows, tees, nipples, or adapters in certain piping arrangements. Fewer individual components can reduce threaded joints, conserve installation space, simplify assembly, and create a cleaner piping layout.
Durable Class 150 Malleable Iron Construction
Class 150 black malleable iron side outlet elbows combine strength, toughness, and convenient threaded installation. The FNPT connections allow straightforward field assembly without welding at the fitting connections and provide flexibility for maintenance, repairs, and future system modifications.
The 150# or Class 150 designation identifies the fitting class rather than a universal 150 PSI maximum working pressure. Proper selection should consider nominal pipe size, operating pressure, temperature, conveyed media, thread compatibility, applicable standards, and manufacturer specifications.
Industrial and Commercial Applications
Typical applications include industrial plant piping, mechanical systems, compressed-air lines, utility piping, equipment connections, machinery installations, commercial construction, maintenance operations, and specialized multi-directional piping layouts.
Dependable Class 150 Black Iron 90° Side Outlet Elbow
For contractors, industrial buyers, OEMs, and MRO professionals, the Globally Manufactured 150# FNPTxFNPTxFNPT Malleable Black Iron Pipe 90° Side Outlet Elbow provides an economical combination of 90-degree routing, integrated side branching, three FNPT connections, durable malleable iron construction, and dependable threaded piping performance.
