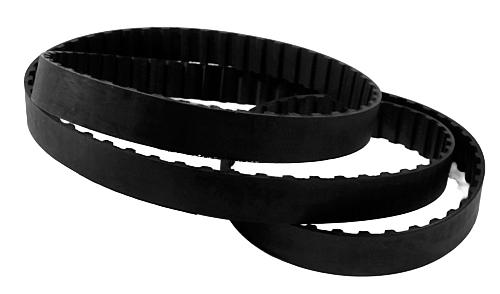

MXL Mini Extra Light Industrial Timing Belt
Precision Synchronous Power for Compact Industrial Drives
The MXL (Mini Extra Light) Industrial Timing Belt is engineered for applications that demand high accuracy, consistent timing, and smooth, quiet operation in compact mechanical systems. With its fine pitch and lightweight profile, the MXL belt is ideal for low-torque, high-precision equipment where space is limited but performance is critical.
Constructed with a durable neoprene rubber body, fiberglass tensile cords, and a nylon tooth facing, this belt delivers excellent strength, dimensional stability, and wear resistance. Its trapezoidal tooth profile ensures precise synchronization with mating pulleys, making it a trusted choice for motion-control systems.
MXL Timing Belt Specifications
Engineered for Accuracy and Reliability
-
Pitch: 0.080" (2.032 mm)
-
Tooth Profile: Classical trapezoidal
-
Standard Widths: 1/8", 1/4", 3/8"
-
Construction:
-
Neoprene rubber body for durability
-
Fiberglass cords for minimal stretch and high tensile strength
-
Nylon tooth facing for reduced friction and extended service life
-
-
Operating Temperature: -30°C to +80°C (-22°F to +176°F)
This combination ensures precise registration, low noise, and long-lasting performance in continuous-use or start-stop applications.
Applications of MXL Timing Belts
Ideal for Small, High-Precision Mechanical Systems
MXL belts are extensively used in compact automation and motion-control equipment, including:
-
3D printers
-
Medical and diagnostic devices
-
Lab automation equipment
-
Small CNC routers
-
Office machinery
-
Printers and plotters
-
Vending equipment
-
Robotics and mechatronics
Their fine pitch enables smooth, accurate movement and reliable synchronous operation, making them essential for industries requiring precise motion control and compact design.
Why Choose MXL Timing Belts?
The MXL Mini Extra Light Timing Belt offers excellent efficiency, quiet operation, and consistent timing accuracy, making it one of the most dependable solutions for miniature synchronous drive systems.
Need sizing or OEM cross-reference assistance? We’re here to help ensure a perfect fit for your application.
