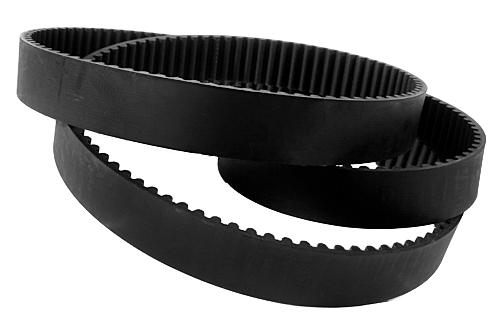

Industrial Timing Belt

REQUEST FOR QUOTE

Trapezoidal Timing Belt
Trapezoidal Timing Belt
High Torque Drive Belt
High Torque Drive Belt

Timing Belts – Precision Power Transmission with MXL, XL, L, H, XH, XXH & HTD 3M, 5M, 8M, 14M, 20M Series

Timing belts are essential components in synchronous drive systems, offering precise power transmission, accurate synchronization, and maintenance-free operation. Commonly used in both light and heavy-duty applications, timing belts come in various types and sizes to match a wide range of mechanical requirements. Two major categories dominate the market: classical trapezoidal belts (MXL, XL, L, H, XH, XXH) and curvilinear HTD belts (3M, 5M, 8M, 14M, 20M).

Classical Trapezoidal Timing Belts

These belts use a trapezoidal tooth profile and are widely used in legacy and general industrial applications.

MXL (Mini Extra Light)

  • Pitch: 0.080" (2.03 mm)

  • Applications: Small equipment, robotics, printers, instrumentation

XL (Extra Light)

  • Pitch: 0.200" (5.08 mm)

  • Applications: Light-duty drives, office equipment, 3D printers

L (Light)

  • Pitch: 0.375" (9.53 mm)

  • Applications: Packaging machinery, textile equipment, conveyor systems

H (Heavy)

  • Pitch: 0.500" (12.7 mm)

  • Applications: Heavier industrial machines, woodworking equipment

XH (Extra Heavy)

  • Pitch: 0.875" (22.23 mm)

XXH (Double Extra Heavy)

  • Pitch: 1.25" (31.75 mm)

  • Applications: Very high torque industrial equipment and machinery

These belts are ideal for synchronous drives where backlash must be minimized, offering high positional accuracy.

HTD Timing Belts – High Torque Drive (Curvilinear)

HTD belts feature a curvilinear tooth profile, distributing stress more evenly for improved durability and load capacity. They are widely used in modern industrial and automotive systems.

HTD 3M

  • Pitch: 3 mm

  • Applications: Small equipment, precision drives, 3D printers

HTD 5M

  • Pitch: 5 mm

  • Applications: Light machinery, office automation systems

HTD 8M

  • Pitch: 8 mm

  • Applications: General industrial machinery, compressors, packaging lines

HTD 14M

  • Pitch: 14 mm

  • Applications: High-torque, heavy-duty drives like conveyors, crushers, and large fans

HTD 20M

  • Pitch: 20 mm

  • Applications: Extra-heavy duty applications requiring high power and load resistance, such as mining and heavy construction equipment

HTD belts are favored for their ability to transmit higher torque in compact systems and are often used with steel or fiberglass tension cords for extended belt life.

Applications of Timing Belts

Timing belts are a staple in a wide range of industries due to their no-slip performance, quiet operation, and high efficiency:

  • Automotive: Engine timing, superchargers, camshaft drives

  • Industrial Automation: Conveyors, robotic arms, CNC machines

  • Office Equipment: Printers, copiers, plotters

  • Home Appliances: Washing machines, vacuum cleaners

  • Medical Equipment: Imaging and diagnostic machines

  • Fitness Equipment: Treadmills, ellipticals

Why Choose Timing Belts?

  • Precise motion control

  • No lubrication required

  • Minimal maintenance

  • High efficiency

  • Compact design options

In summary, whether you're working with classical trapezoidal belts like MXL or XL for smaller applications or high-torque HTD belts like 8M and 14M for heavy-duty systems, timing belts offer consistent, reliable performance across industries. Choosing the right series ensures optimal belt life, efficiency, and load-handling capabilities in synchronous drive systems.
