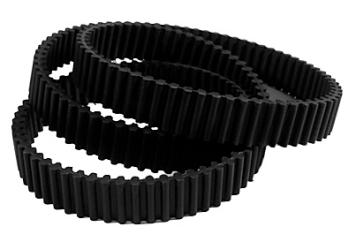

8M Series Double Sided HTD High Torque Drive Timing Belt
High-Performance Synchronous Power for Bidirectional Drive Systems
The 8M Series Double Sided HTD (High Torque Drive) Timing Belt is engineered for industrial applications that require precise, high-torque, bidirectional power transmission. Featuring an 8 mm pitch and curvilinear HTD tooth geometry on both sides, this belt provides smooth, slip-free performance in complex drive layouts where multiple pulleys rotate in opposite directions. Its double-sided construction ensures maximum flexibility, accurate synchronization, and long-lasting durability in high-demand environments.
Specifications of the 8M Double Sided HTD Belt
Dual-Tooth Engagement for Maximum Efficiency
-
Tooth Pitch: 8 mm
-
Profile: HTD curvilinear teeth on both belt surfaces
-
Construction: Neoprene or polyurethane body for strength and wear resistance
-
Tensile Cords: High-strength fiberglass or aramid reinforcement
-
Standard Widths: 20 mm, 30 mm, 50 mm, 85 mm
-
Temperature Range: -30°C to +100°C (varies by material)
-
Performance Benefits:
-
Low noise due to optimized tooth geometry
-
Zero-slip, positive engagement
-
Excellent resistance to oil, abrasion, chemicals, and ozone
-
High load-carrying capacity with minimal stretch
The double-sided HTD profile ensures consistent torque transfer on both sides of the belt, enabling synchronized multi-axis movement in confined mechanical spaces.
Applications of 8M Series Double Sided HTD Belts
Ideal for Complex, Multi-Pulley, and Reverse-Motion Drives
The 8M Double Sided HTD belt is widely used in heavy-duty synchronous systems, including:
-
Industrial automation and motion control systems
-
Conveyor assemblies with counter-rotating shafts
-
Textile and printing machinery
-
High-speed packaging and labeling equipment
-
Robotic arms and pick-and-place devices
-
CNC machinery and precision machining centers
High-Torque Accuracy in a Compact Design
With superior torque distribution, quiet operation, and long service life, the 8M Series Double Sided HTD Timing Belt is the preferred choice for engineers designing compact, multi-directional synchronous drive systems. It delivers reliable, maintenance-efficient performance in the most challenging industrial environments.
