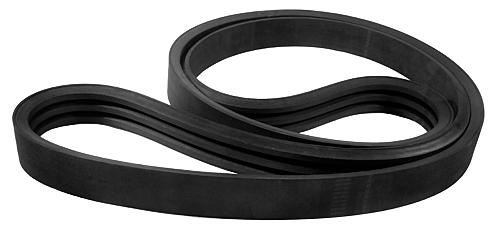

8/SPC9000 Banded Narrow Metric Wedge Industrial V Belt

Banded SPC Series Narrow Wedge Industrial V Belts are engineered for maximum power transmission efficiency, durability, and stability in heavy-duty industrial environments. These belts combine the superior load-handling capabilities of the SPC wedge profile with a banded construction, which enhances performance in multi-groove drive systems prone to vibration or belt whip. Compliant with DIN 7753 and ISO 4184 standards, these belts are ideal for high-speed, high-torque applications where dependability is non-negotiable.

Specifications of Banded SPC V Belts

• Top Width (per rib): 22 mm

• Height: 18 mm

• Included Angle: 40°

• Banded Construction: Multiple SPC belts joined with a strong, flexible band for synchronized operation

• Pitch Width: ~19 mm per rib

• Length Range: 2000 mm to over 10,000 mm

• Temperature Range: -30°C to +80°C

• Cord Material: High-tensile strength polyester or aramid

• Rubber Compound: Oil-resistant, anti-static synthetic rubber for extended life

• Design: Cogged or raw edge options available for increased flexibility and efficiency

The banded design ensures even load distribution and prevents belt side-tracking, especially under shock or pulsating loads.

Applications of Banded SPC Belts

These belts are built for extreme industrial applications, including:

• Large mining and aggregate conveyors

• Steel mills and rolling equipment

• Heavy-duty compressors and industrial blowers

• Pulp and paper machinery

• Power generation equipment

• Multi-pulley high-speed machinery

Banded SPC belts are especially effective in drives that require precision alignment and shock absorption.

Why Choose Banded SPC Series V Belts?

Banded SPC Series Narrow Wedge V Belts offer unmatched power density, stability, and longevity. Their robust construction resists stretching, reduces maintenance, and performs flawlessly under extreme conditions—making them the top choice for critical industrial applications where reliability is key.
